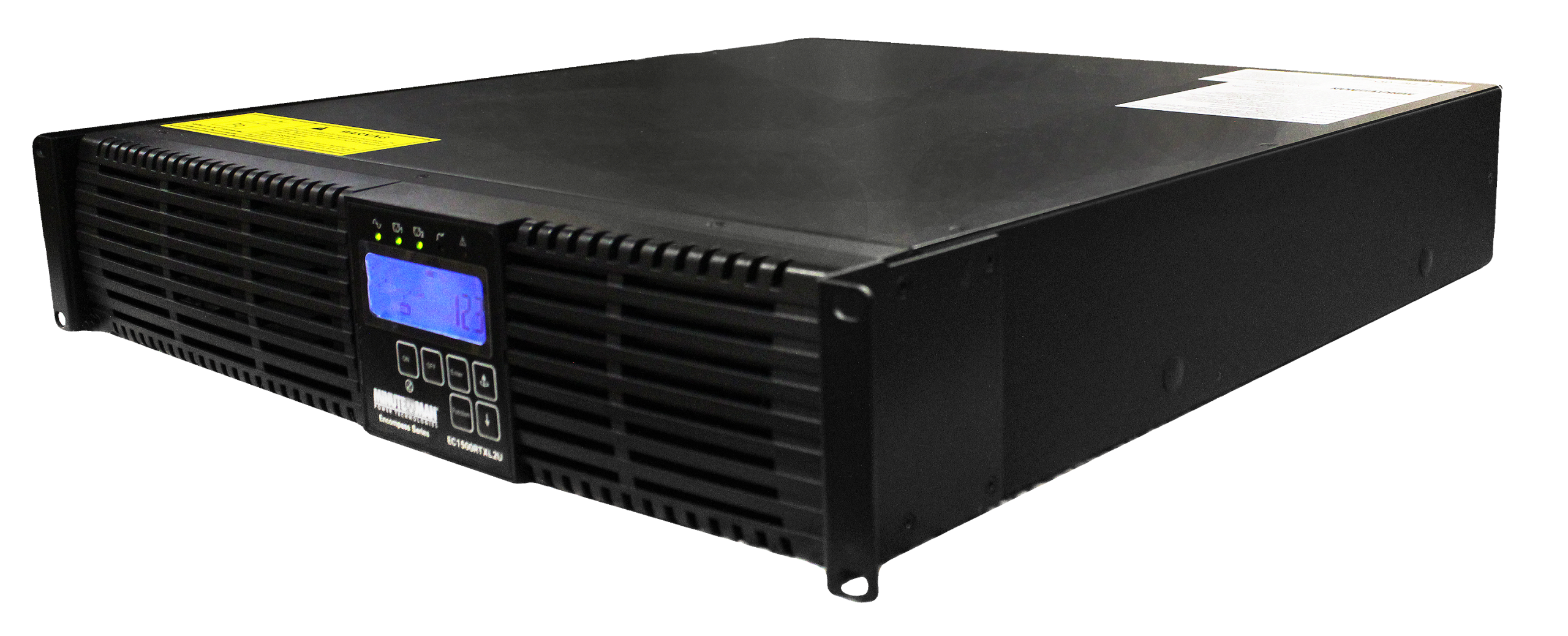

ENCOMPASS® RTXL

ON-LINE UNINTERRUPTIBLE POWER SUPPLY

ENCOMPASS® RTXL ONLINE UNINTERRUPTIBLE POWER SUPPLY

Experience reliable power protection with our advanced online UPS series, designed for true double-conversion performance. Extend uptime indefinitely with compatible external battery packs and stay informed with a user-friendly front panel LCD. TAA-compliant for Federal, State, and Local government use, it also features output receptacle control for optimized load management. Backed by a full 3-year warranty, including batteries, for complete peace of mind.

APPLICATIONS

  • Local Area Networks (LANs)
  • Critical server and network cabinets
  • Remote network closets
  • Edge computing
  • Distributed Antenna Systems (DAS)
  • Government (Federal, State, and Local)
  • Security systems
  • Home Audio/Visual installations
  • Highly sensitive equipment
  • Hospitality markets
  • Education (K-12 or Colleges and Universities)

FEATURES

  • True online, double-conversion technology
  • Compact case design, (only 2U for all models), for high-density rack installations.
  • Compatible with external battery packs for unlimited runtimes
  • TAA compliant
  • Flexible installation format: Rack or Tower
  • Rackmount ears come attached to UPS
  • Easy-to-read LCD display
  • 0.9 output power factor
  • Highly-efficient, Economy Mode option
  • Output receptacles control
  • Independent Battery Bypass – allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
  • Hot-swappable battery replacement
  • Cold Start capable
  • Automatic internal bypass
  • Simultaneous USB and RS232 communications
  • Compatible with Minuteman’s SentryHD software
  • SNMP compatible (with optional card)
  • Dedicated EPO port
  • Full three-year warranty (including batteries)
  • Green UPS design (RoHS and Energy Star compliant)
  • $200,000 platinum Protection Guarantee

WARNING: This product can expose you to chemicals, including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65warnings.ca.gov/product

SPECIFICATIONS

For complete product information, brochures and manuals visit out Resource Library.

UPS Model
EC1000RTXL2U
EC1500RTXL2U
EC2000RTXL2U
EC3000RTXL2U
GENERAL
Topology
Double-conversion, On-line, True Sine Wave
VA Rating
1,000VA
1,500VA
2,000VA
3,000VA
Load Capacity
900 Watts
1,350 Watts
1,800 Watts
2,700 Watts
Power Factor
0.9
Input (10ft. power cord)
5-15P
5-20P
L5-30P
Receptacles
(6) 5-15R
(6) 5-15/20R
(6) 5-15/20R / (1) L5-30R
Outlet Control
(2) Independently controllable banks of (3) outlets, (L5-30R is Always On)
Installation Type
Rack/Tower or Wall (with optional installation kit)
INPUT
Nominal Voltage
120VAC
Acceptable Input Voltage
0-160VAC
Frequency Range
50/60Hz, ±6Hz, Auto-sensing
Power Factor Correction
≥99% at full load
Efficiency
>90% Full Load, On-line Mode (AC – AC)
>96% Full Load, Economy Mode
OUTPUT (NON-BATTERY OPERATION)
Voltage Default
120VAC (110/127VAC adjustable)
Voltage Regulation
±2% of nominal voltage
Frequency Range
50/60Hz, ±6Hz
Efficiency (Line Mode)
>90% (Full Load)
OUTPUT (BATTERY OPERATION)
Nominal Voltage
120VAC (110/127VAC adjustable)
Voltage Regulation
Nominal ±2% (until Low Battery Warning)
Frequency
50/60Hz, ±0.2Hz (unless synchronized to utility)
Voltage T.H.D.
≤3% (Full Linear Load)
BATTERIES
Battery Type
Sealed, non-spillable, maintenance-free, valve-regulated lead acid
Replacement Module
BM0069
BM0070
BM0071
Runtime (Half Load)
10 Minutes
15 Minutes
10 Minutes
10 Minutes
Runtime (Full Load)
2 Minutes
5 Minutes
3 Minutes
3 Minutes
Compatible Battery Packs
BP24RTXL2U
BP24V72RTEXL
BP48RTXL2U
BP48V36RTEXL

BP72RTXL2U

BP72V24RTEXL

ENVIRONMENTAL
Operating Temp. (Max)
0° to 40°C (+32° to +104°F)
Operating Humidity
10% to 90% Non-condensing
Operating Elevation
0 to 3,000m (0 to +10,000 ft.)
PHYSICAL
UPS Size (LxWxH) in Inches and mm (with rack ears installed)
16” x 18.9” x 3.5”
407 x 479 x 88mm
19.2” x 18.9” x 3.5”
487 x 479 x 88mm
23.7” x 18.9” x 3.5”
602 x 479 x 88mm
UPS Weight
24.3 lbs. / 11 Kgs.
44.1 lbs. / 20 Kgs.
65.7 lbs. / 27 Kgs.
Battery Pack Size (LxWxH) in Inches
BP24RTXL2U: 17.3”x16.9”x3.5”
BP24V72RTEXL: 17.3”x26.8”x5.3”
BP48RTXL2U: 17.3”x16.9”x3.5”
BP48V36RTEXL: 17.3”x26.8”x5.3”
BP72RTXL2U: 17.3”x22.9”x3.5”
BP72V24RTEXL: 17.3”x26.8”x5.3”
Battery Pack Weights
BP24RTXL2U: 60 lbs. / 27.2 Kgs.
BP24V72RTEXL: 138.9 lbs. / 63 Kgs.
BP48RTXL2U: 60 lbs. / 27.2 Kgs.
BP48V36RTEXL: 138.9 lbs. / 63 Kgs.
BP72RTXL2U: 83.3 lbs. / 37.8 Kgs.
BP72V24RTEXL: 127.9 lbs. / 58 Kgs.
REGULATORY COMPLIANCE
Safety and Approvals
cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 /R: 2014), FCC Class A,
CE certified, Energy Star 2.0, DoE 10 CFR Part 430, RoHS2 (EU Directive 2011/65/EU)
