SV 230V Series Online Uninterruptible Power Supply

SV Series

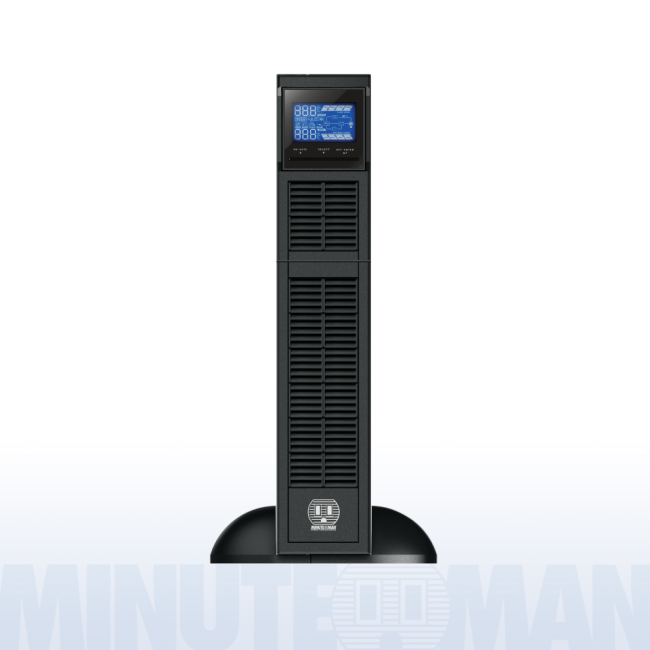

SV SERIES ONLINE UNINTERRUPTIBLE POWER SUPPLY

The Minuteman SV Series features a field-proven Digital Signal Processor (DSP) achieving high reliability, while providing protection from electrical power disturbances to the connected load. Industry-leading functionality is standard and includes hot swappable battery, powerful internal charger, emergency shut-down and programmable receptacles.

APPLICATIONS

Education/Research Laboratories
Processing Manufacturing (Food/Beverage, Pharmaceutical, Plastics, Packaging)
Water and Wastewater Treatment
Hospitals/Medical
Retail
Broadcast
Robotics
Printing
Paper Production
Network Equipment
Servers

FEATURES

High-End Features + Budget-Friendly Price

True Double Conversion Online UPS
Unity Output Power Factor
Tower/Rack Mount Convertible Design
Compact and Lightweight
Advanced Digital Control Technology
Wide Input Voltage and Frequency Ranges
LCD/LED Mimic Screen Personalization
Programmable Power Management Outlets
Eco and Advanced Eco Mode for Energy Saving
Emergency Power Off Function (EPO)
Communications Capability
Intelligent Self-Diagnostics
High-Efficiency and Protection
Advanced Battery Management

Optional Features

Variety of Customer Options Slot
Manual Maintenance Bypass

Target Markets and Channels

Education/Research Laboratories
Processing Manufacturing (Food/Beverage, Pharmaceutical, Plastics, Packaging)
Water and Wastewater Treatment
Hospitals/Medical
Retail
Broadcast
Robotics
Printing
Paper Production
Network Equipment
Servers

WARNING: This product can expose you to chemicals, including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65warnings.ca.gov/product

SPECIFICATIONS

For complete product information, brochures and manuals visit out Resource Library.

Model (SV)	Model (SV)		1000RT230	1500RT230	2000RT230	3000RT230
Capacity VA / Watts		Capacity VA / Watts	1000 VA	1500 VA	2000 VA	3000 VA
Capacity VA / Watts				1000 W	1500 W	2000 W	3000 W
INPUT
Voltage Range	Rated Volts	220-240 VAC					220-240 VAC
		Low Line Transfer	160 VAC/140 VAC/120 VAC/110 VAC ± 5 % (based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0)						160 VAC/140 VAC/120 VAC/110 VAC ± 5 % (based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0)
		Low Line Comeback	175 VAC/155 VAC/135 VAC/125 VAC ± 5 %
		High Line Transfer	300 VAC ± 5 %
	Voltage Range	High Line Comeback	290 VAC ± 5 %
Frequency Range			40 Hz ~ 70 Hz		40 Hz ~ 70 Hz
Power Factor		Power Factor	≥ 0.99 @nominal voltage						≥ 0.99 @nominal voltage
THDi		THDi	≤ 5% @ 205-245VAC THDU < 1.6% @ input and full linear load condition						≤ 5% @ 205-245VAC THDU < 1.6% @ input and full linear load condition
OUTPUT						OUTPUT
Output Voltage		Output Voltage	200/208/220/230/240 VAC						200/208/220/230/240 VAC
AC Voltage Regulation		AC Voltage Regulation	± 1% (Batt Mode)
Frequency Range			47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
Frequency Range			50Hz ± 0.1% Hz or 60Hz ± 0.1%Hz (Bat. Mode)						50Hz ± 0.1% Hz or 60Hz ± 0.1%Hz (Bat. Mode)
Current Crest Ratio (CF)	Current Crest Ratio (CF)		3:1 (max.)						3:1 (max.)
Harmonic Distortion (THDU)		Harmonic Distortion (THDU)	<2% (Linear load) <4% (Non-Linear load)						<2% (Linear load) <4% (Non-Linear load)
Transfer Time	Transfer Time		Zero						Zero
Waveform (Battery Mode)	Waveform (Battery Mode)		Pure Sinewave						Pure Sinewave
EFFICIENCY						EFFICIENCY
AC Mode		AC Mode	≥ 89%		≥ 89%	≥ 91%		≥ 91%
Battery Mode		Battery Mode	≥ 88%		≥ 88%	≥ 90%		≥ 90%
ECO Mode		ECO Mode	≥ 96%
BATTERY										BATTERY
Battery Type		Battery Type	(2) 12V/9Ah	(3) 12V/9Ah	(4) 12V/9Ah	(6) 12V/9Ah
Typical Recharge Time		Typical Recharge Time	3 hours recover to 95% capacity (for Non-XL models only)						3 hours recover to 95% capacity (for Non-XL models only)
Charging Current (max.)		Charging Current (max.)	2A (default)					2A (default)
Charging Voltage		Charging Voltage	27.4 VDC ± 1%	41.1 VDC ± 1%	54.7 VDC ± 1%	82.1VDC ± 1%
	LCD DISPLAY									LCD DISPLAY
Status		Status	Load level, Battery Level, Alarms, Operating Mode						Load level, Battery Level, Alarms, Operating Mode
Readings		Readings	Input Voltage and Frequency, Output Voltage and Frequency, Battery Backup Time (hours/minutes)						Input Voltage and Frequency, Output Voltage and Frequency, Battery Backup Time (hours/minutes)
Control/Select Buttons		Control/Select Buttons	(3) buttons to turn UPS On/Off, navigate LCD screen & Mute Alarms						(3) buttons to turn UPS On/Off, navigate LCD screen & Mute Alarms
AUDIBLE & VISUAL ALARMS										AUDIBLE & VISUAL ALARMS
Warning Indicators		Warning Indicators	Low battery, Overload, Battery Not Connected, Overcharge, Site Wiring Fault, EPO Enabled, Over Temperature, Charger Failure, Battery Fault, Bypass Out of Range and Bypass Frequency Unstable						Low battery, Overload, Battery Not Connected, Overcharge, Site Wiring Fault, EPO Enabled, Over Temperature, Charger Failure, Battery Fault, Bypass Out of Range and Bypass Frequency Unstable
**PHYSICAL WEIGHT & DIMENSIONS H" x W" x D" / [mm]										**PHYSICAL WEIGHT & DIMENSIONS H" x W" x D" / [mm]
Rack Mount		Rack Mount	3.46” x 17.24” x 16.14” (2U) [88 x 438 x 410]	3.46” x 17.24” x 16.14” (2U) [88 x 438 x 410]	3.46” x 17.24” x 20.08” (2U) [88 x 438 x 510]	3.46” x 17.24” x 24.80” (2U) [88 x 438 x 630]
Tower		Tower	17.24” x 3.46” x 16.14” (2U) [438.0 x 87.9 x 410.0]	17.24” x 3.46” x 16.14” (2U) [438.0 x 87.9 x 410.0]	17.24” x 3.46” x 20.08” (2U) [438.0 x 87.9 x 510.0]	17.24” x 3.46” x 24.80” (2U) [438.0 x 87.9 x 629.9]
Net Weight lbs. / (kg)		Net Weight lbs. / (kg)	26 / (12)	34 / (15)	43 / (20)	61 / (28)
ENVIRONMENT (Electronics)										ENVIRONMENT (Electronics)
Operating		Operating	32°F (0°C) to 104°F (40°C)						32°F (0°C) to 104°F (40°C)
Humidity		Humidity	20-90 % RH @ 0 - 40° C (non-condensing) (32°F - 104°F						20-90 % RH @ 0 - 40° C (non-condensing) (32°F - 104°F
Storage		Storage	-13°F (-25°C) to 104°F (40°C) BATTERIES (REFRESH Charge @ 3 months)						-13°F (-25°C) to 104°F (40°C) BATTERIES (REFRESH Charge @ 3 months)
Noise Level		Noise Level	Less than 50dBA @ 1 Meter						Less than 50dBA @ 1 Meter
MANAGEMENT / COMMUNICATION										MANAGEMENT / COMMUNICATION
Smart RS-232/USB		Smart RS-232/USB	Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC						Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC
Optional SNMP / MODBUS		Optional SNMP / MODBUS	Power management from SNMP manager and web browser						Power management from SNMP manager and web browser
Optional AS400 Card		Optional AS400 Card	With DB9 or 9 Pin Connector						With DB9 or 9 Pin Connector
AGENCY										AGENCY
Listing		Listing	CE; EN 62040-2:2006 (C2); EN 62040-1:2008					CE; EN 62040-2:2006 (C2); EN 62040-1:2008
* Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC.										* Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC.
