ENTRUST-LG

UNINTERRUPTIBLE POWER SUPPLY

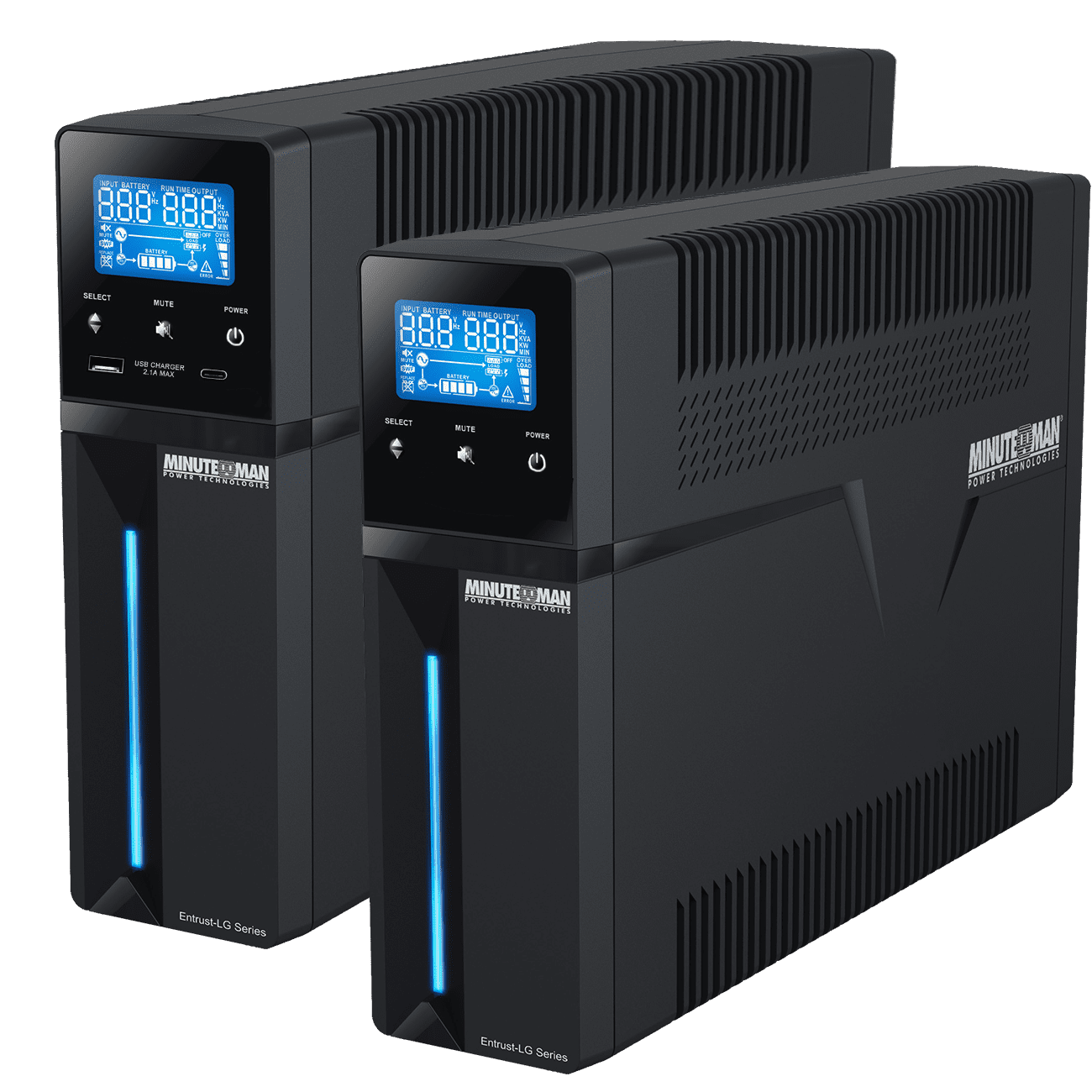

ENTRUST-LG® UNINTERRUPTIBLE POWER SUPPLY

Line-interactive mini tower UPS

The Entrust-LG UPS Series is a compact line-interactive mini tower UPS, perfect for small to medium-load applications. Its versatile form factor integrates seamlessly into any environment, providing reliable protection against power fluctuations and outages.

APPLICATIONS

  • Gaming Consoles and Computers
  • Desktop Workstations
  • Network Equipment
  • VoIP Communications
  • Telephone Systems
  • External Computer Accessories
  • Security Cameras and DVRs

Download Product Brochure | Download Product User Manual

Compact Tower, Big Time Power

The Minuteman Entrust-LG Series UPS grants users access to features commonly found in more expensive UPS offerings. This includes automatic voltage regulation, as well as spike, surge protection, and battery backup capabilities, ensuring the safeguarding of valuable equipment. This Entrust-LG employs line-interactive technology to ensure seamless power continuity, with stable and reliable power to connected devices.

The Entrust-LG’s compact footprint makes it an ideal solution for cramped spaces including network and security closets, AV cabinets, tight desks, and more. With sizes ranging from 550VA to 2000VA, the Entrust-LG series can support a wide range of equipment, including personal computers, small to midsize security DVRs, network devices, small telephone systems, and more.

Entrust-LG® Key Features

Protects Against Spikes, Surges, Brownouts, and Blackouts

  • Automatic Voltage Regulation (AVR)
  • Four surge and battery-protected outlets (550/850VA models)
  • Four surge-only outlets for protection of non-critical accessories (550/850VA models)
  • Five surge and battery-protected outlets (1000/1350VA models)
  • Five surge-only outlets for protection of non-critical accessories (1000/1350VA models)
  • Four NEMA 5-15/20R surge and battery protected outlets (2000VA model)
  • Four NEMA 5-15/20R surge-only outlets for protection of non-critical accessories (2000VA model)
  • 6-foot power cord with right-angle NEMA 5-15P (550VA/850VA/1000VA/1350VA models)
  • 6-foot power cord with right-angle NEMA 5-20P (2000VA model)
  • Input circuit breaker protection

Feature-rich Design

  • Compact mini-tower case design
  • LCD Front Panel Display
  • USB Charging Ports (1-Type A/1-Type C) on 1000/1350/1500/2000VA models)
  • USB communications
  • Coax Surge protection-port
  • RJ45 Ethernet surge protection port (1Gbit)
  • Hot-swappable batteries
  • Front panel battery access
  • Tool-less battery replacement design
  • 3-year warranty (electronics) 2-year warranty (batteries)
  • RoHS 2 compliant
  • Energy Star 2.0 certified
  • Department of Energy 10CFR Part 430 compliant (550/850/1000/1350/1500VA models)
  • Transformer-friendly receptacles
  • DC Startup capability
  • Built-in self-diagnostics testing
  • Audio & Visual alarms
  • Alarm silencer button
  • Scroll Button for LCD Display and UPS Status

Tour The Product

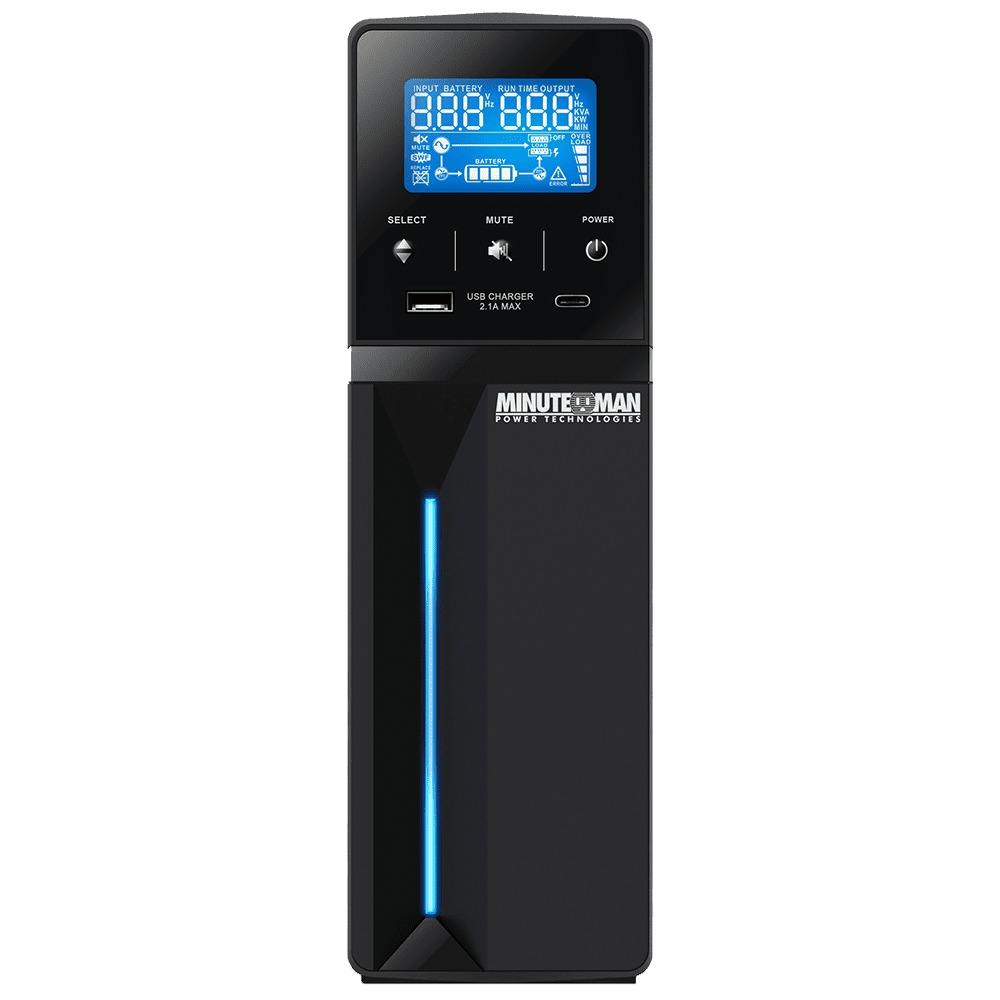

Front Panel Display and Controls:

The front panel controls will have the following indicators and function buttons:

  1. Realtime Display (Input / Output)
  2. AC Mode Icon
  3. On Battery Icon
  4. “Error” Icon
  5. Replace Battery Icon
  6. Site Wiring Fault (SWF) Icon
  7. Load Shedding Status
  8. Load Status
  9. Battery Capacity
  10. “POWER” – On/Off/Test Button
  11. “SELECT” – Menu Scroll Button
  12. “MUTE” – Alarm Silencer Button

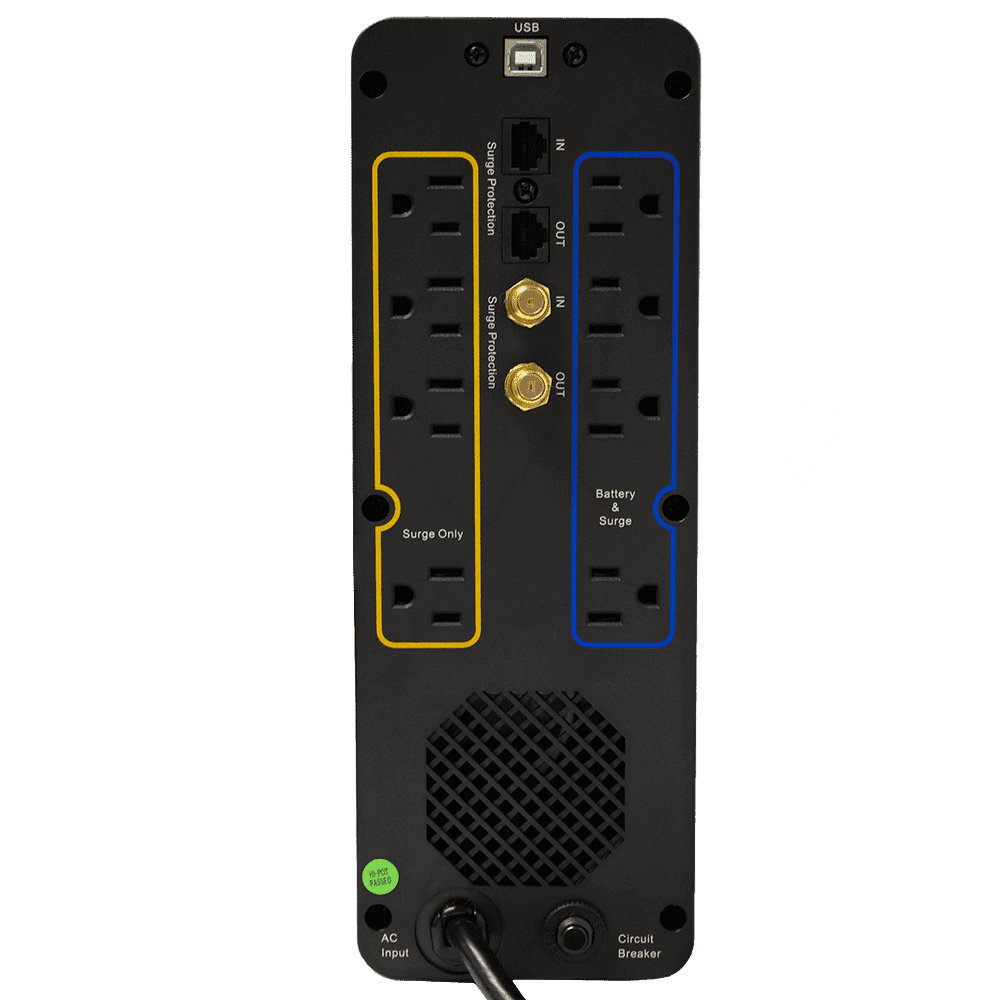

UPS ­Back Panel Connections:

  1. Battery & Surge Outlets: Connect critical equipment such a PCs, Gaming Consoles, and Routers to the “Battery & Surge” outlets on the UPS to maintain power during power outages.
  2. Load Shedding Outlets: Can be shut off via front panel or through SentryHD
  3. Surge Only Outlets: For all other non-critical devices use the “Surge-Only” outlets.
  4. USB Communications Port: The Entrust-LG Series is compatible with Minuteman’s SentryHD monitoring and management software which is available as a free download at www. minutemanups.com/minuteman-software-download-center/. Use the included USB communications cable to connect the UPS to your computer and follow the installation instructions included with the SentryHD download.
  5. Surge Protection Ports: Optional surge protection for Ethernet network connections (RJ45) or broadband connections (Coax) are available but not required for the operation of the UPS. and
  6. Surge Protection Ports: Optional surge protection for Ethernet network connections (RJ45) or broadband connections (Coax) are available but not required for the operation of the UPS.
  7. Resettable Input Circuit Breaker: Allows the UPS to be reset in the event of an overload. (First remove one or more connected devices from the UPS to reduce the load before pressing the circuit breaker).
  8. Input Power Cord: Utilizes a NEMA 5-15P for connecting to utility source. (NOTE: The ETR2000LG uses a NEMA 5-20P input plug).

Other Features

  • Efficient Automatic Voltage Regulation (AVR) Hardware
    Regulates output voltage for protection against spikes, surges, brownouts, and blackouts
  • Compact form factor ideal for tight installs
  • Protect all of your devices
    8-10 power battery backup and surge-only outlets ensure space for all pieces of the system
  • Tool-less Battery Access
    Setup and maintenance made easy with tool-less battery panel
  • Efficient, Responsible Power
    Energy Star 2.0, DoE 10CFR Part 430, and RoHS 2 Compliant
  • Total Control of Your Power
    Free download of Minuteman SentryHD management software connects via USB and provides total monitoring and management capability
  • Independent Battery Bypass
    Provides voltage regulation with surge and spike protection, even when batteries are weak or dead
  • Unmatched Peace of Mind
    3-year limited warranty (electronics), 2-year warranty (batteries), and Minuteman Platinum Protection Plan™

WARNING: This product can expose you to chemicals, including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65warnings.ca.gov/product

Software

Get ultimate control over your power with SentryHD

In today’s complex world of data, networks, and software, control and management of applications is vital, especially when it comes to the power that is supplied to these devices.

SentryHD, included free with all current Minuteman UPS systems, is the latest update to Minuteman’s popular Sentry monitoring and management software. This powerful tool provides users and network managers a range of monitoring & managment tools for their power, allowing total control before, during, and after power problems.

With a simple connection to the UPS via USB or RS-232, SentryHD provides the capability to configure UPSs, monitor power, and diagnose issues, all from secure connections on the network. This eliminates wasteful runs around the facility, saving time and money.

Warranty

3 Years Electronics and 2 years of Trouble-free Service – Guaranteed

Minuteman UPSs already ship with the best warranty in the business at 3 years, including a non-prorated 2-year battery coverage for the Entrust-LG.

Two levels of Extended Warranty Plans are also available on most UPS product lines to extend that coverage to 5 years. These plans ensure a full 5 years of trouble-free ownership.

UPS Model
Demo Image
Demo Image
Demo Image
Demo Image
Demo Image
Demo Image
General Features
Topology
Line-Interactive
VA Rating
550
850
1000
1350
1440
2000
Load Capacity (Watts)
330
510
600
810
900
1200
Installation Format
Mini Tower
USB Charging Ports
None
(1) Type A & (1)  Type C
Input
Voltage Range
90VAC to 140VAC
Frequency Range
60Hz ±6Hz
Input Plug (6-ft. Cord)
NEMA 5-15R
NEMA 5-20R
Input Protection
Circuit Breaker
Max. Input Current
10 Amps
Surge Joule Rating
>1200 joules
Output
Voltage Range (AC Mode)
104VAC to 140VAC
Voltage Range (Battery Mode)
120VAC ±5% until low battery warning
Wave Form (Battery Mode)
Simulated Sine Wave (Stepped)
Output Receptacles
Surge Only
(4) 5-15P
(5) 5-15P
(4) 5-15/20P
Battery & Surge
(4) 5-15P
(5) 5-15P
(4) 5-15/20P
Batteries
Replacement Module
BM0063
BM0064
BM0065
BM0066
BM0066
BM0094
Tool-less Battery Replacement
Yes
Yes
Yes
Yes
Yes
Yes
Est. Runtime (Full/Half Load)
3.9 / 13.7
3.6 / 11.1
3.7 / 11.7
4.6 / 13.4
3.5 / 12.6
3.4 / 10.9
Independent Battery Bypass
Yes
Yes
Yes
Yes
Yes
Yes
DC Startup
Yes
Yes
Yes
Yes
Yes
Yes
Hot Swappable Batteries
Yes
Yes
Yes
Yes
Yes
Yes
Display & Communications
Front Panel Display
LCD
LCD
LCD
LCD
LCD
LCD
Battery Function Alarms
Yes
Yes
Yes
Yes
Yes
Yes
Alarm Silencer
Yes
Yes
Yes
Yes
Yes
Yes
Shutdown Software
SentryHD (via download)
Communication Port
USB (HID compliant)
Communication Cable Included
Yes
Yes
Yes
Yes
Yes
Yes
Environmental
Operating Temp. Range
+32°F to +104°F (0°C to +40°C)
Operating Humidity Range
0% to 95% (Non-condensing)
Operating Elevation
0 to +10,000 ft. (0 to +3,000m)
Physical
Unit Dimensions (LxWxH)
11.4” x 3.9” x 11.0” (290 * 99 * 280mm)
11.4” x 3.9” x 11.0”  (290 * 99 * 280mm)
16.1” x 3.9” x 11.0” (410 * 99 * 280mm)
16.1” x 3.9” x 11.0” (410 * 99 * 280mm)
16.1” x 3.9” x 11.0” (410 * 99 * 280mm)
16.1” x 3.9” x 11.0” (410 * 99 * 280mm)
Shipping Dimensions (LxWxH)
14.9” x 7.4” x 15.2” (378 * 187 * 387mm)
14.9” x 7.4” x 15.2”   (378 * 187 * 387mm)
19.7” x 7.4” x 11.0” (500 * 187 * 387mm)
19.7” x 7.4” x 11.0” (500 * 187 * 387mm)
19.7” x 7.4” x 11.0” (500 * 187 * 387mm)
19.7” x 7.4” x 11.0” (500 * 187 * 387mm)
Unit Weight lbs.  / (Kgs.)
13.7 / (6.2)
17.9 / (8.1)
20.9 / (9.5)
25.3 / (11.5)
26.4 / (12.0)
28.7 / (13.0)
Shipping Weight lbs. / (Kgs.)
15.4 / (7.0)
21.2 / (9.6)
23.1 / (10.5)
27.6 / (12.5)
29.8 / 13.5)
30.9 / (14.0)
Warranty & Certifications
Standard Warranty
3 Years Electronics / 2 Years Batteries
Connected Equipment Guarantee
$75,000
Safety Agency Approvals
cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3:2014/R:2017-10) 3rd Edition, FCC 47 CFR Part 15, Subpart B: 2020, CE certified, Energy Star2.0
Green Compliance
RoHS2, Energy Star 2.0, DoE 10 CFR Part 430 Subpart B Compliant
