ENDEAVOR® 5-10KVA ONLINE UNINTERRUPTIBLE POWER SUPPLY
Double conversion rack/tower UPSs with LCD Display for critical IT, telecommunications, and security systems
The Minuteman® Endeavor 5-10kVA Series delivers uninterrupted power for vital IT, telecom, and security setups. With a clear LCD Display for instant updates on AC, battery, and UPS status, this UPS is generator-compatible, versatile, and ensures maximum uptime. Offering pure sine wave output and adaptability for critical applications, it’s the ultimate choice for reliability and efficiency.
APPLICATIONS
- High-Density Installations
- Enterprise Network Installations
- Network Corporate Servers
- Telecom/VoIP Systems
- Extended Runtime
The Endeavor 5-10kVA is a high-density, double-conversion online UPS series providing unparalleled power protection for critical IT and business infrastructure. With a unique multi-color touchscreen panel for easy management and monitoring, this UPS offers a wide range of installation options and is ideal for servers, networks, industrial applications. The Endeavor 5-10kVA has advanced features like predictive battery replacement and hot-swappable batteries, it’s designed for IT professionals and administrators needing reliable power solutions.
New Advanced Features
- Multi-color, touchscreen LCD panel for easy UPS configuration and monitoring
- Compact design: 4U for 5/6kVA, 5U for 8/10kVA (208VAC models)
- High-frequency design for efficient performance
- Space-saving solution for higher density installations
- Predictive Battery Replacement feature with early warning alarms
- Tool-less, front-panel battery connection and replacement
- Hot-swappable batteries for continuous power
- Independent battery chargers for unlimited runtime
- Automatic recognition of additional battery packs for recalculating runtimes
- Easy connect transformer module with NEMA input plug
- Wide range of 120V and 208V NEMA output receptacles available in standard configurations
- Smart ECO Mode feature allows for increased energy savings
Key Features & User Benefits
- True double-conversion online technology: Provides maximum protection for critical equipment.
- Digital Signal Processor (DSP) design: Enhances reliability by reducing the number of UPS components, ensuring robust performance.
- High power factor (0.9pf): Increases real power capacity for each model, delivering more reliable power to connected devices.
- 120/208V output models with standard receptacles: Offers flexibility to support multiple voltages used on connected loads.
- Multi-function, color LCD touchscreen display: Enables full UPS configuration and real-time monitoring of input/output power and load condition for user convenience.
- User-configurable voltages (208V as default): Greater flexibility in tailoring the UPS to suit diverse environments.
- Automatic internal bypass: Activates Bypass Mode and alerts users in the event of hardware or battery faults, ensuring continuous power.
- Independent Battery Bypass (IBB): Maintains constant 120/208V output even with dead batteries when utility power is available.
- Smart fan control: Maximizes UPS cooling efficiency with variable-speed fan control for optimal performance.
- Cold start function: Start the UPS without available utility power, ensuring continuous operation.
- Available option slot: Facilitates the use of network or programmable relay cards for enhanced functionalities.
- Simultaneous serial communication options (USB and RS-232): Offers flexibility in managing and monitoring the UPS system simultaneously.
- REPO Port: Supports immediate shutdown of output power in emergency situations for added safety.
- 3-year standard product warranty: Reduces ownership costs and assures greater reliability.
- Optional 5-year warranty options available: Provides peace of mind with extended guarantees for up to 5 years.
- Platinum Protection Plan®: Insures connected equipment for up to $250,000, ensuring comprehensive protection.
- RoHS2 and Energy Star 2.0 compliant: Environmentally-friendly design reduces operating costs and ensures energy efficiency.
LCD Status Panel
Multi-colored Touchscreen LCD Display Panel offers all these features and more:
- User-friendly UPS configuration and status display
- Clear and descriptive UPS status information in plain text
- Convenient display of UPS Serial Number and Model Number
- Display of Battery Module part number and FW number for easy identification
- Front screen adjustment for input voltage transfer points and sensitivity
- Output voltage adjustment accessible via the front screen
- Serial number reporting through software and SNMP card
- Easily set Battery Replacement date and manage External Battery Packs from the front screen
- Access Event logs (Faults & Warnings) directly via the front screen
- Control Load Shedding function and reset settings to factory defaults via the front panel
- Display load capacity per output bank and total load for quick assessment
- Check load bank state and reset Battery Aging Coefficient using the front panel controls
The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.
Electrical Characteristics
Digital Signal Processor
- Reduced number of components in the UPS also reduces the potential for defects or malfunctions
- Digital Signal Processor, (DSP), combines many components into a single processor, increasing the reliability of the UPS and reducing any downtime potential
- Helps ensure stable, quality power and long life span
High Output Power Factor
- All models feature an output power factor of 0.9 which increases the Watt capacity of the units
- Larger capacities in a smaller UPS VA rating can reduce the overall cost of the UPS solution for a specific load requirement
Output T.H.D.
- Endeavor units maintain an output AC signal within 2% of a true sine wave pattern (Total Harmonic Distortion)
- Prevents equipment damage from internal heat build up on sensitive connected equipment
Overload Capacity
- Endeavor UPSs are designed to support such situations with the ability to absorb up to 150% of its rated load for up to 30 seconds
- Allows the UPS to be sized for maximum capacity without worry of overload and shutdown, providing cost-savings
Advanced Battery Features
- Independent Battery Bypass allows the Endeavor UPS to operate in Normal Mode, even with weak, dead, or defective batteries
- Endeavor UPSs monitor internal battery status at regular intervals; If the UPS detects weak or bad batteries, it will engage an audio alarm and also any preconfigured electronic notifications
- Normal AC output will be maintained as long as utility power is supplied within the UPS’ nominal input range
- The UPS will have a constant 120/208/240V signal and protection from any dangerous spikes or surges while allowing time to replace batteries without having to shut down connected equipment
Optional 240V Output
- Endeavor units can be configured for use with 220, 230 and 240V input and output.
- For information about additional configuration options, please contact your Minuteman representative.
Communication Features
Bundled with SentryHD software
- Minuteman SentryHD auto-shutdown and monitoring software is available for free download.
SNMP-compatible (SNMP-NV6 card)
- All models include a standard internal communication slot which is compatible with all current Minuteman SNMP card options
- Adding an SNMP-NV6 card allows remote management and control over any IP-based network
- The Option card slot and serial communications port can be operated simultaneously, allowing SNMP to be used in conjunction with Minuteman SentryHD software
Battery Technology
Extended Runtime Capability
External Battery Pack Chargers
|
Battery Technology
Hot-Swappable Batteries
|
WARNING: This product can expose you to chemicals, including Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65warnings.ca.gov/
Software
Get ultimate control over your power with SentryHD
In today’s complex world of data, networks, and software, control and management of applications is vital, especially when it comes to the power that is supplied to these devices.
SentryHD, included free with all current Minuteman UPS systems, is the latest update to Minuteman’s popular Sentry monitoring and management software. This powerful tool provides users and network managers a range of monitoring & managment tools for their power, allowing total control before, during, and after power problems.
With a simple connection to the UPS via USB or RS-232, SentryHD provides the capability to configure UPSs, monitor power, and diagnose issues, all from secure connections on the network. This eliminates wasteful runs around the facility, saving time and money.
Accessories
Extended Runtime Capability
- All models come bundled with a battery pack module
- For protection through extended blackouts, the Endeavor Series can also utilize connections built into each battery pack to connect multiple units, providing virtually unlimited runtime capabilities
Battery Pack Models
Because each UPS has different battery requirements to support its maximum load capacity, the Endeavor 5-10kVA Series uses battery packs sized to match each UPS model.
External Battery Packs for Extended Runtime
- BP192V5CRTXL (5 & 6kVA)
- BP192V10CRTXL (8 & 10kVA)
- An optional external battery pack is available for applications that require extended runtimes (5 or more external battery packs)
- These battery packs include internal chargers that can shorten the recharge time of all the connected battery packs exponentially
- Critical for installation environments that experience frequent outages or long periodic outages
Power Management via SNMP Communication
Optional SNMP-NV6 network card allows for easy management of UPS without the need for a connected PC or server
- SNMP-NV6
Optional Programmable Relay Card:
- Monitors UPS events
- 6 programmable relay output contacts
- Configurable normal open or normal close for each relay contact
- Configurable UPS shutdown delay time
- Configurable input signal as shutdown UPS or battery test
- Has the ability to protect up to 6 computers unattended shutdown gracefully
WARNING: This product can expose you to chemicals, including Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65warnings.ca.gov/
Extended Warranty Plan
5 Full Years of Trouble-free Service – Guaranteed
Minuteman UPSs already ship with the best warranty in the business at 3 years, including non-prorated battery coverage on most products.
Two levels of Extended Warranty Plans are also available on most UPS product lines to provide an additional 2 years of coverage. These plans ensure a full 5 years of trouble-free ownership.
For complete product information, brochures and manuals visit out Resource Library.
Base Models | ED5KRT | ED6KRT | ED8KRT | ED10KRT |
General Features | ||||
Topology | Double-conversion, Online | |||
Number of Phases | Single (1ф 2W + G) | |||
VA Rating | 5,000VA | 6,000VA | 8,000VA | 10,000VA |
Load Capacity | 4,500 Watts | 5,400 Watts | 7,200 Watts | 9,000 Watts |
Output Receptacles | (3) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block | (3) L6-30R / (2) L6-20R /
(1) 3-wire Terminal Block | (4) L6-30R / (2) L6-20R /
(1) 3-wire Terminal Block | (4) L6-30R / (2) L6-20R /
(1) 3-wire Terminal Block |
Installation Format(s) | Rack or Tower | |||
Input | ||||
Nominal Voltages | 208 (Default), 220, 230, 240VAC | |||
Acceptable Input Voltage | 0 - 300VAC | |||
Voltage Range | 156-280VAC | 180-280VAC | ||
Power Factor Correction (PFC) | ≥99% at Full Load | |||
Frequency Range | 40 to 70Hz at Full Load | |||
Input Plug Type (Cord Length) | Hardwire w/optional NEMA L6-30P (6-ft.) | Hardwire only | ||
Input Surge Protection | Resettable Circuit Breaker | |||
Maximum Input Current | 32 Amps | 38 Amps | 51 Amps | 63 Amps |
Surge Joule Rating | 3,140 Joules | |||
Output (AC Normal) | ||||
Voltage Range | 208 (Default), 220, 230, 240VAC | |||
Voltage Regulation | 208,220,230,240VAC (±2%) | |||
Frequency Range | 50/60Hz, auto selecting, +/-3Hz (unless synchronized to utility) | |||
Efficiency (AC-AC) | 93% at full-rated non-linear load | |||
Output (Battery) | ||||
Output Waveform (Battery Mode) | True Sine-wave | |||
Nominal Voltages | 208 (Default), 220, 230, 240VAC | |||
Voltage Regulation | Nominal +/-0.1% (until Low Battery warning) | |||
Frequency Range | 50/60Hz, +/-0.1Hz | |||
Voltage T.H.D. | ≤2% (Linear Load) | |||
Overload Capacity | ≥106% - ≤110% for 10 minutes / ≥111% - ≤125% for 5 minutes / ≥126% - ≤150% for 30 seconds | |||
Batteries | ||||
Replacement Module | BM0097 | BM0098 | ||
Tool-less Replacement | Yes (Front panel replacement) | |||
Runtime (Full/Half Load) | 3 min. / 11 min. | 2 min. / 7 min. | 3 min. / 11 min. | 2 min. / 7 min. |
Ind. Battery Bypass | Yes | |||
DC Startup | Yes | |||
Hot-swappable Batteries | Yes | |||
Display & Communications | ||||
Front Panel Display | Multi-color, Touchscreen LCD | |||
Alarm Silencer | Yes | |||
Shutdown Software | SentryHD (available via download) | |||
Communication Port(s) | USB/RS232 (Simultaneous access) | |||
Comm. Cables Included | Yes | |||
Remote Emergency Power Off Port | Yes | |||
Environmental | ||||
Operating Temperature Range | +32° to +104°F (0° to +40°C) | |||
Storage Temperature Range | +5° to +131°F (-15° to +55°C) | |||
Operating (Storage) Humidity Range | 0 to 95%, non-condensing | |||
Operating Elevation | 0 to +15,000 ft. (0 to +3,000m) | |||
Storage Elevation | 0 to +50,000 ft. (0 to +15,000m) | |||
Physical | ||||
Unit Dimensions (L x W x H) | 23.27" x 17.24" x 6.81" (591*438*173 mm) | 28.74" x 17.24" x 8.54" (730*438*217 mm) | ||
Shipping Dimensions (L x W x H) | 36.0" x 36.0" x 18.8" (915*915*478 mm) | 36.0" x 36.0" x 20.6" (915*915*95 mm) | ||
Unit Weight | 122.32 lbs. (55.5 Kgs.) | 170.81 lbs. (77.5 Kgs.) Add New | ||
Shipping Weight | 160.0 lbs. (72.6 Kgs.) | 209.0 lbs. (94.8 Kgs.) | ||
Warranty & Certifications | ||||
Standard Warranty | 3 Years (Electronics and Batteries) | |||
Connected Equipment Guarantee | $250,000 | |||
Safety Agency Approvals | cUL, CE | |||
Certifications | UL1778, FCC Class B, Energy Star 2.0, RoHS2 |

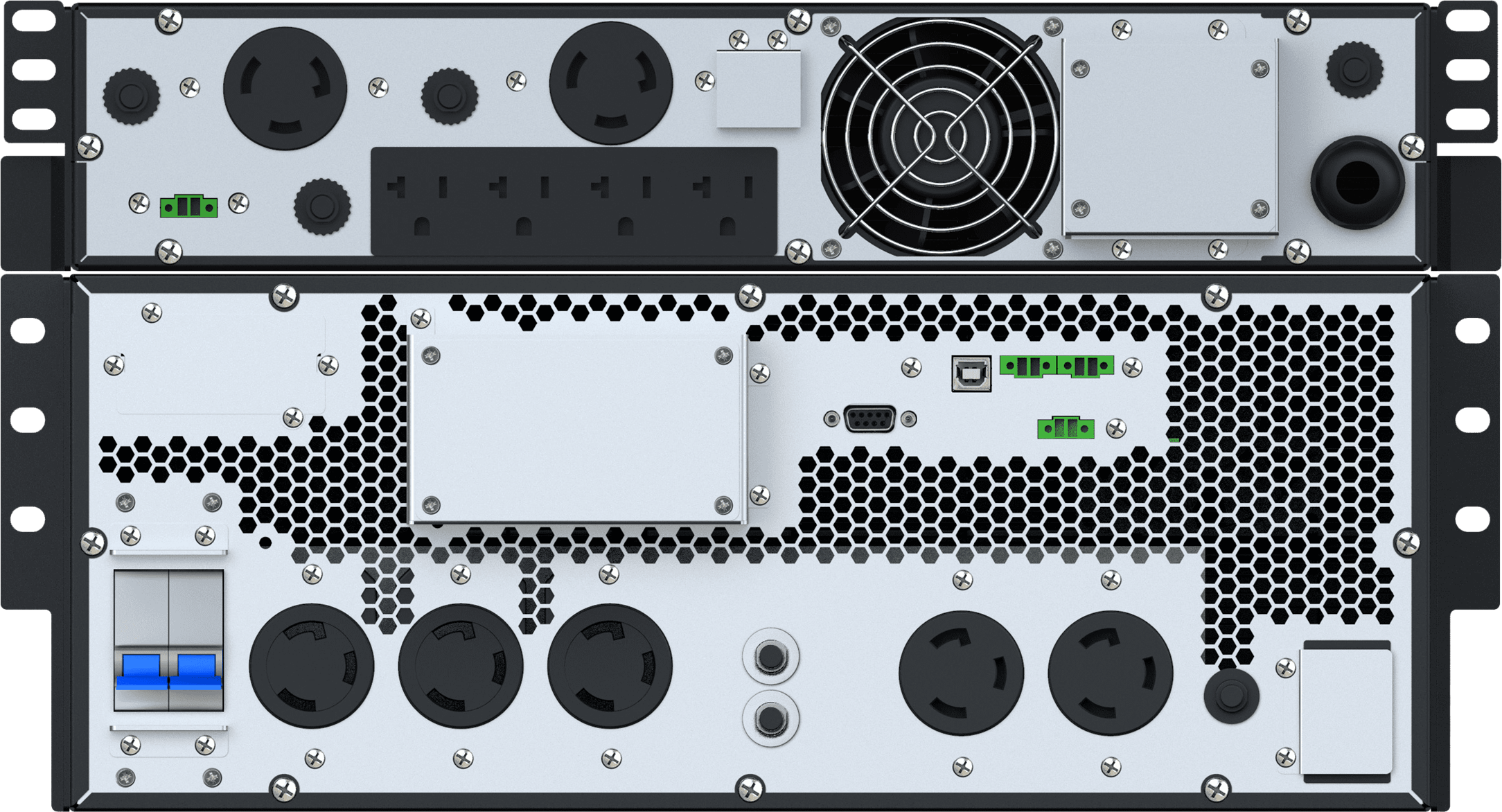

Endeavor 5kVA and Transformers
UPS Model |
ED5KRT-3KTF |
ED5KRT-5KTF |
|
General Features |
|||
Topology |
Double-conversion, Online |
||
Number of Phases |
Single (1ф 2W + G) |
||
VA Rating |
5,000VA |
||
Load Capacity |
4,365 Watts |
4,275 Watts |
|
Output Receptacles (208-240VAC) |
(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
|
Output Receptacles (120VAC) |
(8) 5-15/20R |
(4) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block |
|
Installation Format(s) |
Rack or Tower |
||
Input |
|||
Nominal Voltages |
208VAC (Default), 220, 230, 240VAC |
||
Acceptable Input Voltage |
0 - 300VAC |
||
Voltage Range |
156-280VAC |
||
Power Factor Correction (PFC) |
≥99% at Full Load |
||
Frequency Range |
40 to 70Hz at Full Load |
||
Input Plug Type (Cord Length) |
Hardwire w/optional NEMA L6-30P (6-ft.) |
||
Input Surge Protection |
Resettable Circuit Breaker |
||
Maximum Input Current |
32 Amps |
||
Surge Joule Rating |
3,140 Joules |
||
Output (AC Normal) |
|||
Voltage Range |
208VAC (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC |
||
Voltage Regulation |
110, 115, 120, 208, 220, 230, 240VAC (±2%) |
||
Frequency Range |
50/60Hz, auto selecting, ±3Hz (unless synchronized to utility) |
||
Efficiency (AC-AC) |
93% at full-rated non-linear load |
||
Output (Battery) |
|||
Output Waveform (Battery Mode) |
True Sine-wave |
||
Nominal Voltages |
208VAC (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC |
||
Voltage Regulation |
Nominal +/-0.1% (until Low Battery warning) |
||
Frequency Range |
50/60Hz, +/-0.1Hz |
||
Voltage T.H.D. |
≤2% (Linear Load) |
||
Overload Capacity |
≥106% - ≤110% for 10 minutes / ≥111% - ≤125% for 5 minutes / ≥126% - ≤150% for 30 seconds |
||
Batteries |
|||
Replacement Module |
BM0097 |
||
Tool-less Replacement |
Yes (Front panel replacement) |
||
Runtime (Full/Half Load) |
3 min. / 11 min. |
||
Ind. Battery Bypass |
Yes |
||
DC Startup |
Yes |
||
Hot-swappable Batteries |
Yes |
||
Display & Communications |
|||
Front Panel Display |
Multi-color, Touchscreen LCD |
||
Alarm Silencer |
Yes |
||
Shutdown Software |
SentryHD (available via download) |
||
Communication Port(s) |
USB/RS232 (Simultaneous access) |
||
Comm. Cables Included |
Yes |
||
Remote Emergency Power Off Port |
Yes |
||
Environmental |
|||
Operating Temperature Range |
+32° to +104°F (0° to +40°C) |
||
Storage Temperature Range |
+5° to +131°F (-15° to +55°C) |
||
Operating (Storage) Humidity Range |
0 to 95%, non-condensing |
||
Operating Elevation |
0 to +15,000 ft. (0 to +3,000m) |
||
Storage Elevation |
0 to +50,000 ft. (0 to +15,000m) |
||
Physical |
|||
Unit Dimensions (L x W x H) |
23.82" x 17.24" 10.22" (605*438*260 mm) |
23.82" x 17.24" 10.22" (605*438*173 mm) |
|
Shipping Dimensions (L x W x H) |
36.0" x 36.0" x 28.3" (915*915*719 mm) |
36.0" x 36.0" x 28.3" (915*915*719 mm) |
|
Unit Weight |
210.48 lbs. (95.5 Kgs.) |
243.54 lbs. (110.5 Kgs.) |
|
Shipping Weight |
262.0 lbs. (118.9 Kgs.) |
295.0 lbs. (133.8 Kgs.) |
|
Warranty & Certifications |
|||
Standard Warranty |
3 Years (Electronics and Batteries) |
||
Connected Equipment Guarantee |
$250,000 |
||
Safety Agency Approvals |
cUL, CE |
||
Certifications |
UL1778, FCC Class B, RoHS2 |
Endeavor 6kVA and Transformers
UPS Model |
ED6KRT-3KTF |
ED6KRT-5KTF |
ED6KRT-6KTF2 |
|
General Features |
||||
Topology |
Double-conversion, Online |
|||
Number of Phases |
Single (1ф 2W + G) |
|||
VA Rating |
6,000VA |
|||
Load Capacity |
5,265 Watts |
5,175 Watts |
5,130 Watts |
|
Output Receptacles (208-240VAC) |
(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
|||
Output Receptacles (120VAC) |
(8) 5-15/20R |
(4) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block |
(16) 5-15/20R |
|
Installation Format(s) |
Rack or Tower |
|||
Input |
||||
Nominal Voltages |
208 (Default), 220, 230, 240VAC |
|||
Acceptable Input Voltage |
0 - 300VAC |
|||
Voltage Range |
156-280VAC |
|||
Power Factor Correction (PFC) |
≥99% at Full Load |
|||
Frequency Range |
40 to 70Hz at Full Load |
|||
Input Plug Type (Cord Length) |
Hardwire w/optional NEMA L6-30P (6-ft.) |
|||
Input Surge Protection |
Resettable Circuit Breaker |
|||
Maximum Input Current |
38 Amps |
|||
Surge Joule Rating |
3,140 Joules |
|||
Output (AC Normal) |
||||
Voltage Range |
208VAC (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC |
|||
Voltage Regulation |
110,115,120,208,220,230,240VAC (±2%) |
|||
Frequency Range |
50/60Hz, auto selecting, ±3Hz (unless synchronized to utility) |
|||
Efficiency (AC-AC) |
93% at full-rated non-linear load |
|||
Output (Battery) |
||||
Output Waveform (Battery Mode) |
True Sine-wave |
|||
Nominal Voltages |
208VAC (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC |
|||
Voltage Regulation |
Nominal +/-0.1% (until Low Battery warning) |
|||
Frequency Range |
50/60Hz, +/-0.1Hz |
|||
Voltage T.H.D. |
≤2% (Linear Load) |
|||
Overload Capacity |
≥106% - ≤110% for 10 minutes / ≥111% - ≤125% for 5 minutes / ≥126% - ≤150% for 30 seconds |
|||
Batteries |
||||
Replacement Module |
BM0097 |
|||
Tool-less Replacement |
Yes (Front panel replacement) |
|||
Runtime (Full/Half Load) |
2 min. / 7 min. |
|||
Ind. Battery Bypass |
Yes |
|||
DC Startup |
Yes |
|||
Hot-swappable Batteries |
Yes |
|||
Display & Communications |
||||
Front Panel Display |
Multi-color, Touchscreen LCD |
|||
Alarm Silencer |
Yes |
|||
Shutdown Software |
SentryHD (available via download) |
|||
Communication Port(s) |
USB/RS232 (Simultaneous access) |
|||
Comm. Cables Included |
Yes |
|||
Remote Emergency Power Off Port |
Yes |
|||
Environmental |
||||
Operating Temperature Range |
'+32° to +104°F (0° to +40°C) |
|||
Storage Temperature Range |
'+5° to +131°F (-15° to +55°C) |
|||
Operating (Storage) Humidity Range |
0 to 95%, non-condensing |
|||
Operating Elevation |
0 to +15,000 ft. (0 to +3,000m) |
|||
Storage Elevation |
0 to +50,000 ft. (0 to +15,000m) |
|||
Physical |
||||
Unit Dimensions (L x W x H) |
23.82" x 17.24" 10.22" (605*438*260 mm) |
23.82" x 17.24" 10.22" (605*438*173 mm) |
23.82" x 17.24" 13.63" (605*438*346 mm) |
|
Shipping Dimensions (L x W x H) |
36.0" x 36.0" x 28.3" (702*550*285 mm) |
36.0" x 36.0" x 28.3" (702*550*285 mm) |
36.0" x 36.0" x 37.8" (915*915*961 mm) |
|
Unit Weight |
210.48 lbs. (95.5 Kgs.) |
243.54 lbs. (110.5 Kgs.) |
331.7 lbs. (150.5 Kgs.) |
|
Shipping Weight |
262.0 lbs. (118.9 Kgs.) |
295.0 lbs. (133.8 Kgs.) |
364.0 lbs. (165.2 Kgs.) |
|
Warranty & Certifications |
||||
Standard Warranty |
3 Years (Electronics and Batteries) |
|||
Connected Equipment Guarantee |
$250,000 |
|||
Safety Agency Approvals |
cUL, CE, |
|||
Certifications |
UL1778, FCC Class B, Energy Star 2.0, RoHS2 |
Endeavor 8kVA and Transformers
UPS Model |
ED8KRT-3KTF |
ED8KRT-5KTF |
ED8KRT-6KTF2 |
ED8KRT-8KTF2 |
|
General Features |
|||||
Topology |
Double-conversion, Online |
||||
Number of Phases |
Single (1ф 2W + G) |
||||
VA Rating |
8,000VA |
||||
Load Capacity |
7,065 Watts |
6,975 Watts |
6,930 Watts |
6,840 Watts |
|
Output Receptacles (208-240VAC) |
(3) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
(3) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
|
Output Receptacles (120VAC) |
(8) 5-15/20R |
(4) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block |
(16) 5-15/20R |
(12) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block |
|
Installation Format(s) |
Rack or Tower |
||||
Input |
|||||
Nominal Voltages |
208 (Default), 220, 230, 240VAC |
||||
Acceptable Input Voltage |
0 - 300VAC |
||||
Voltage Range |
180-280VAC |
||||
Power Factor Correction (PFC) |
≥99% at Full Load |
||||
Frequency Range |
40 to 70Hz at Full Load |
||||
Input Plug Type (Cord Length) |
Hardwire only |
||||
Input Surge Protection |
Resettable Circuit Breaker |
||||
Maximum Input Current |
51 Amps |
||||
Surge Joule Rating |
3,140 Joules |
||||
Output (AC Normal) |
|||||
Voltage Range |
208 (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC |
||||
Voltage Regulation |
110,115,120,208,220,230,240VAC (±2%) |
||||
Frequency Range |
50/60Hz, auto selecting, ±3Hz (unless synchronized to utility) |
||||
Efficiency (AC-AC) |
93% at full-rated non-linear load |
||||
Output (Battery) |
|||||
Output Waveform (Battery Mode) |
True Sine-wave |
||||
Nominal Voltages |
208 (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC |
||||
Voltage Regulation |
Nominal +/-0.1% (until Low Battery warning) |
||||
Frequency Range |
50/60Hz, +/-0.1Hz |
||||
Voltage T.H.D. |
≤2% (Linear Load) |
||||
Overload Capacity |
≥106% - ≤110% for 10 minutes / ≥111% - ≤125% for 5 minutes / ≥126% - ≤150% for 30 seconds |
||||
Batteries |
|||||
Replacement Module |
BM0098 |
||||
Tool-less Replacement |
Yes (Front panel replacement) |
||||
Runtime (Full/Half Load) |
3 min. / 11 min. |
||||
Ind. Battery Bypass |
Yes |
||||
DC Startup |
Yes |
||||
Hot-swappable Batteries |
Yes |
||||
Display & Communications |
|||||
Front Panel Display |
Multi-color, Touchscreen LCD |
||||
Alarm Silencer |
Yes |
||||
Shutdown Software |
SentryHD (available via download) |
||||
Communication Port(s) |
USB/RS232 (Simultaneous access) |
||||
Comm. Cables Included |
Yes |
||||
Remote Emergency Power Off Port |
Yes |
||||
Environmental |
|||||
Operating Temperature Range |
'+32° to +104°F (0° to +40°C) |
||||
Storage Temperature Range |
'+5° to +131°F (-15° to +55°C) |
||||
Operating (Storage) Humidity Range |
0 to 95%, non-condensing |
||||
Operating Elevation |
0 to +15,000 ft. (0 to +3,000m) |
||||
Storage Elevation |
0 to +50,000 ft. (0 to +15,000m) |
||||
Physical |
|||||
Unit Dimensions (L x W x H) |
28.74" x 17.24" x 11.95" (730*438*303.5 mm) |
28.74" x 17.24" x 11.95" (730*438*303.5 mm) |
28.74" x 17.24" x 15.36" (730*438*390.0 mm) |
28.74" x 17.24" x 15.36" (730*438*390.0 mm) |
|
Shipping Dimensions (L x W x H) |
36.0" x 36.0" x 30.1" (915*915*765 mm) |
36.0" x 36.0" x 30.1" (915*915*765 mm) |
48.0" x 40.0" x 39.6" (1220*1016*1006 mm) |
48.0" x 40.0" x 39.6" (1220*1016*1006 mm) |
|
Unit Weight |
258.97 lbs. (117.5 Kgs.) |
292.03 lbs. (132.5 Kgs.) |
347.13 lbs. (157.5 Kgs.) |
380.19 lbs. (172.5 Kgs.) |
|
Shipping Weight |
311.0 lbs. (141.1 Kgs.) |
344.0 lbs. (156.1 Kgs.) |
430.0 lbs. (195.1 Kgs.) |
463.0 lbs. (210.1 Kgs.) |
|
Warranty & Certifications |
|||||
Standard Warranty |
3 Years (Electronics and Batteries) |
||||
Connected Equipment Guarantee |
$250,000 |
||||
Safety Agency Approvals |
cUL, CE |
||||
Certifications |
UL1778, FCC Class B, Energy Star 2.0, RoHS2 |
Endeavor 10kVA and Transformers
UPS Model |
ED10KRT-3KTF |
ED10KRT-5KTF |
ED10KRT-6KTF2 |
ED10KRT-8KTF2 |
ED10KRT-10KTF2 |
|
General Features |
||||||
Topology |
Double-conversion, Online |
|||||
Number of Phases |
Single (1ф 2W + G) |
|||||
VA Rating |
10,000VA |
|||||
Load Capacity |
8,865 Watts |
8,775 Watts |
8,730 Watts |
8,730 Watts |
8,550 Watts |
|
Output Receptacles (208-240VAC) |
(3) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
(3) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block |
|
Output Receptacles (120VAC) |
(8) 5-15/20R |
(4) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block |
(16) 5-15/20R |
(12) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block |
(8) 5-15/20R / (4) L5-30R / (2) 3-wire Terminal Block |
|
Installation Format(s) |
Rack or Tower |
|||||
Input |
||||||
Nominal Voltages |
208 (Default), 220, 230, 240VAC |
|||||
Acceptable Input Voltage |
0 - 300VAC |
|||||
Voltage Range |
180-280VAC |
|||||
Power Factor Correction (PFC) |
≥99% at Full Load |
|||||
Frequency Range |
40 to 70Hz at Full Load |
|||||
Input Plug Type (Cord Length) |
Hardwire only |
|||||
Input Surge Protection |
Resettable Circuit Breaker |
|||||
Maximum Input Current |
63 Amps |
|||||
Surge Joule Rating |
3,140 Joules |
|||||
Output (AC Normal) |
||||||
Voltage Range |
208 (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC |
|||||
Voltage Regulation |
110,115,120,208,220,230,240VAC (±2%) |
|||||
Frequency Range |
50/60Hz, auto selecting, ±3Hz (unless synchronized to utility) |
|||||
Efficiency (AC-AC) |
93% at full-rated non-linear load |
|||||
Output (Battery) |
||||||
Output Waveform (Battery Mode) |
True Sine-wave |
|||||
Nominal Voltages |
208 (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC |
|||||
Voltage Regulation |
110, 115, 120, 208, 220, 230, 240VAC (±0.1%) (Until Low Battery warning) |
|||||
Frequency Range |
50/60Hz, +/-0.1Hz |
|||||
Voltage T.H.D. |
≤2% (Linear Load) |
|||||
Overload Capacity |
≥106% - ≤110% for 10 minutes / ≥111% - ≤125% for 5 minutes / ≥126% - ≤150% for 30 seconds |
|||||
Batteries |
||||||
Replacement Module |
BM0098 |
|||||
Tool-less Replacement |
Yes (Front panel replacement) |
|||||
Runtime (Full/Half Load) |
2 min. / 7 min |
|||||
Ind. Battery Bypass |
Yes |
|||||
DC Startup |
Yes |
|||||
Hot-swappable Batteries |
Yes |
|||||
Display & Communications |
||||||
Front Panel Display |
Multi-color, Touchscreen LCD |
|||||
Alarm Silencer |
Yes |
